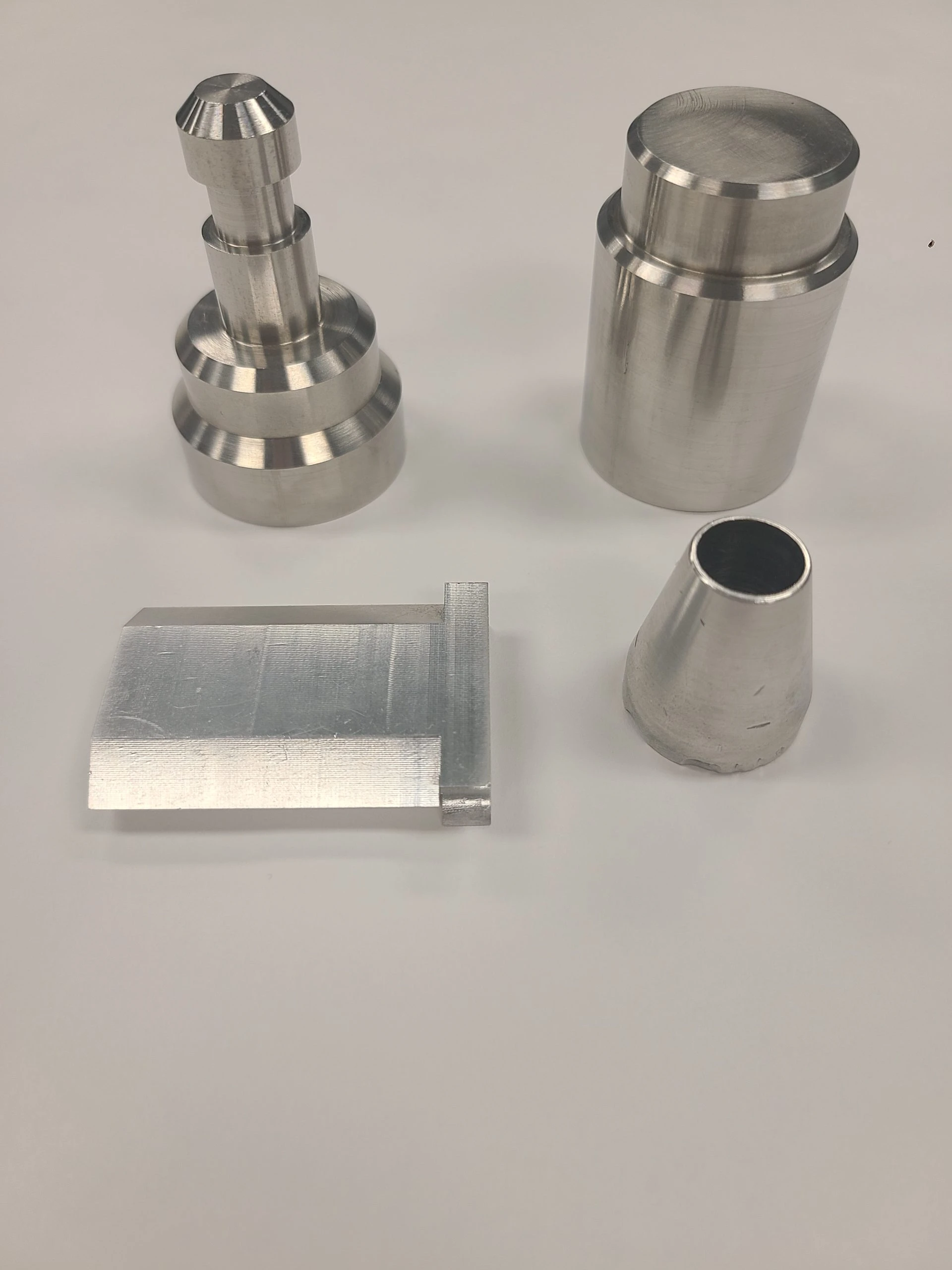

CNC Machining 3
CNC Machining Center
CNC-Machining-Department-2 SST-Enclosure-Front-Metal-Forming-Product-2 CNC Machining 3 CNC Machining Center

CNC Machining & Turning Department

We have the facility to machine all your part needs including Milling, Drilling, Reaming, Boring, Turning, Threading, Tapping and nearly any other machining application. Our experienced programmers can set up and program all of your part requirements. We track production and quality control through an advanced barcode allocation program. We know exactly how your parts are progressing through our shop and insure quality control through all steps of operation.

CNC Machining Overview

Tri-State Fabricators is not your everyday C.N.C machine shop. For over 20 years, Tri-State Fabricators has been working hard to perfect our craft by hiring the best machinists available and supplying them with the finest equipment. Tri-State Fabricators specializes in close tolerance work ranging in size from 1/4“to 14” diameters in a wide variety of materials including mild steel, alloy steels, stainless steel, aluminum, bronze and more.

  • 57.48″ x 20.08″ Table Size
  • X Axis Travel – 44″
  • Y Axis Travel – 20.08″
  • Z Axis Travel – 20.08″
  • 21.65″ Throat Distance
  • 1760 lb Load Capacity
  • NO. 40 Spindle Nose
  • 10,000 RPM Spindle Speed
  • .04 – 697.8 IPM Cut Feed Rate
  • 24 ATC Twin Arm Tool Magazine
  • 24 Tool Holders
  • 3.14/4.33 Max Tool Diameter
  • 17.78 lbs Max Tool Weight
  • 13.7″ Max Tool Length
  • 20 HP Main Motor
  • Fusion 640M Mazatrol

Advanced-compact CNC Turning Center Designed to produce small precision parts with unsurpassed accuracy. The most widely used compact CNC Turning Center in the world!

Specifications:

  • 11.81″ Max Machining Dia.
  • 2″ Max Dia. thru Spindle
  • 17.50″ Max Mach. Length
  • 2 Axes
  • Up to Ø2.75 Swing
  • 20 HP Spindle Motor
  • 19″ Chuck Size
  • Fusion 640 control
  • 12 Tool Holders

*** New Machine Coming This Summer!

Specifications:

  • Easy-to-use MAZATROL SmoothG control for advanced high-speed, high-accuracy performance
  • Long fixed-table design
  • Standard moveable control pendant
  • Optional table partition available
  • Standard 15,000 rpm CAT 40-taper spindle
  • 1,574 ipm rapid traverse rate
  • 24-tool (48 optional) storage capacity
  • Automatic tool changer
  • Maximum table load of 2,200 lbs.

Machining Specifications

SPECIFICATIONVALUES
CapacityTable Right/Left78.740 in / 2000 mm
Table Longitudinal20.080 in / 610 mm
SpindleSpindle Taper40
Maximum Speed16000 rpm
Motor Output (10 minute rating)30.0 hp / 22 kw
MagazineNumber of Tools24
Feed AxesTravel (X Axis)66.36 in / 1670 mm
Travel (Y Axis)20.08 in / 610 mm
Travel (Z Axis)20.08 in / 610 mm
  • Aluminum
  • Exotic Metals
  • Galvanized Steel
  • Galvannealed Steel
  • Stainless Steel
  • Steel
